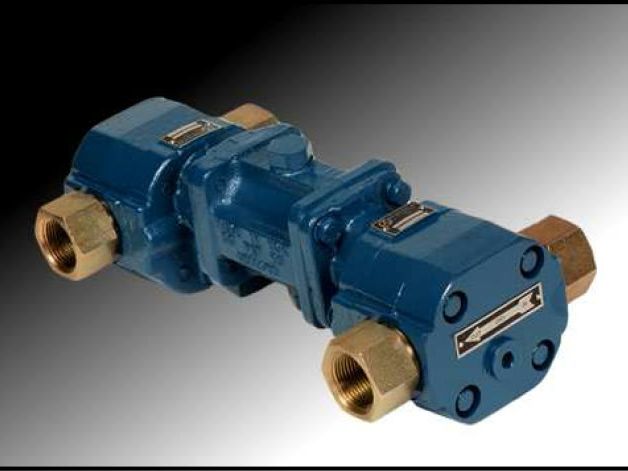

Energy Exchange Pump
No-external-power glycol pump for high-pressure dehydration systems, with flow rates from 10 to 6,000 U.S. GPH.
The Energy Exchange Pump requires no external power source and can be easily retrofitted to existing dehydrator systems.
Its compact, lightweight design enables the pump to hang directly in piping, eliminating additional foundations or supports while delivering constant, pulsation-free flow.
Four frame sizes with modular construction prevent cross contamination of dry glycol by wet glycol and simplify servicing or modifications for lower pressures and increased flow rates.
Specifications
| Specification | Value |
|---|---|
| Flow Rate | 10 – 6,000 U.S. GPH |
| Max Pressure | 2,500 PSIG |
| Operating Temperature | Up to 200º F |
| Weight | 14 – 353 lbs |
