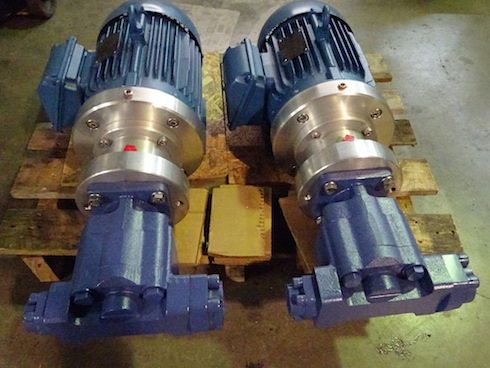

Model GS 2200 Series
Mid-range electric drive pump for continuous TEG circulation.
The GS 2200 Series delivers stable, pulsation-free flow for glycol dehydration systems without the need for dampeners.
Its simple, serviceable design has no slides, pistons, check valves, or O-rings to replace, providing consistent performance throughout the pump operating life.
Specifications
| Specification | Value |
|---|---|
| Pump Type | Positive displacement rotary gear, external gear |
| Flow Range | 0.5 – 168 GPM (model dependent) |
| Motor Certifications | ATEX and NEMA certified motors available |
| Recommended Minimum Speed | 575 RPM @ 20 Hz (60 Hz) / 480 RPM @ 17 Hz (50 Hz) for variable-speed operation |
