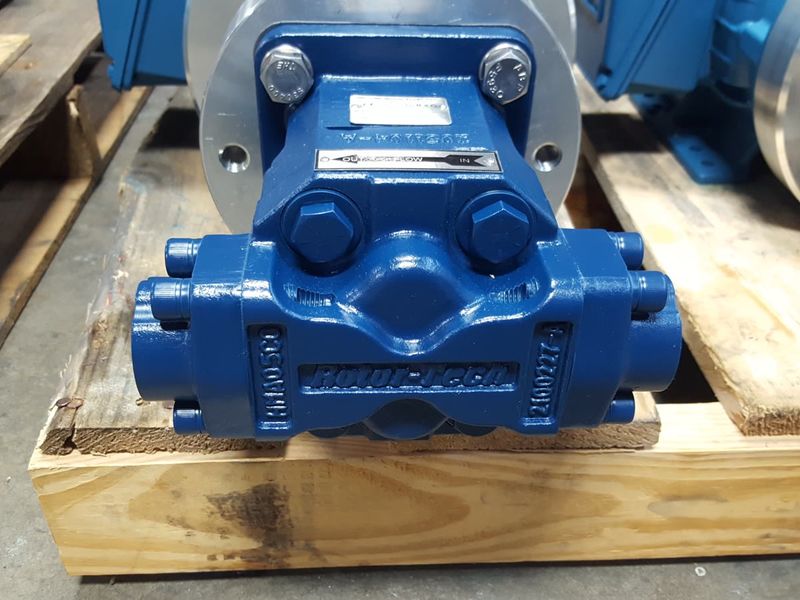

Model GS 1100 Series
Compact electric drive pump for small to mid-sized TEG systems.
The GS 1100 Series is a positive displacement rotary gear pump with an external gear design, built for reliable circulation of glycol in natural gas dehydration units.
It is available with a full range of options including AC or DC, single or 3-phase, 60 Hz or 50 Hz, and explosion-proof or totally enclosed fan cooled motors.
Specifications
| Specification | Value |
|---|---|
| Pump Type | Positive displacement rotary gear, external gear |
| Flow Range | 0.5 – 168 GPM (model dependent) |
| Motor Certifications | ATEX and NEMA certified motors available |
| Recommended Minimum Speed | 575 RPM @ 20 Hz (60 Hz) / 480 RPM @ 17 Hz (50 Hz) for variable-speed operation |
